Outdoor
LED Displays
For spaces that demand brightness.
Maxsell outdoor displays are built for full exposure. Direct sun, open air, continuous operation. Configured and installed to stay visible and stable in every environment.

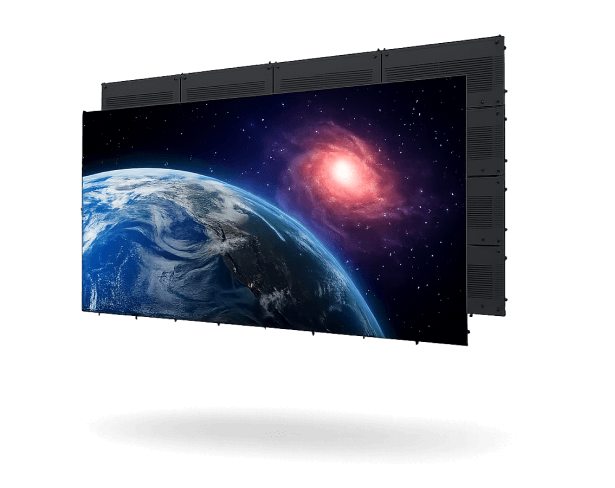

RHINO
Built to command attention.
Seven pixel pitch options, all running at 4500-6000 nits. Built to stay visible and consistent across any scale of outdoor installation, from a single retail frontage to a full building facade.
IP65 Protection
Dust and water resistant, rated for permanent outdoor exposure

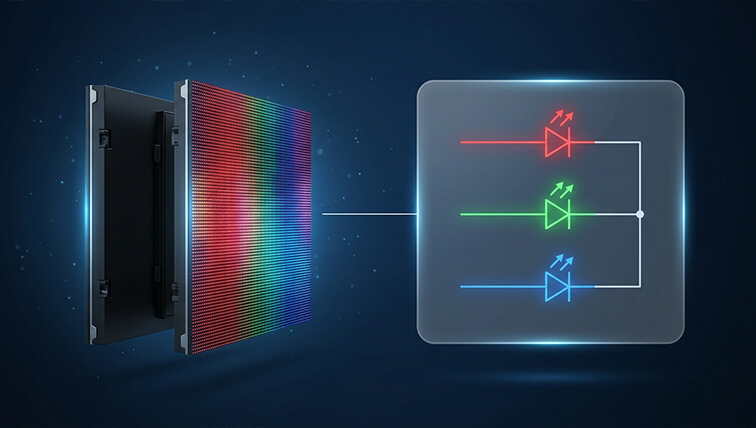

Common Cathode Technology
Lower heat generation, reduced power draw, extended operational life
Ultra-Wide Viewing Angle
Clear sightlines off-axis, no dead zones for passing audiences
3840 Hz Refresh Rate
Clean output in high-ambient-light and on-camera conditions
| PIXEL PITCH (MM) | CABINET RESOLUTION | REFRESH RATE | BRIGHTNESS | CABINET SIZE W×H×D (MM) |
|---|---|---|---|---|
| 2.5 | 384 × 384 | 3840 Hz | 4500–6000 Nits | 960 × 960 × 135 |
| 3.076 | 312 × 312 | 3840 Hz | 4500–6000 Nits | 960 × 960 × 135 |
| 4.0 | 240 × 240 | 3840 Hz | 4500–6000 Nits | 960 × 960 × 135 |
| 5.0 | 192 × 192 | 3840 Hz | 4500–6000 Nits | 960 × 960 × 135 |
| 6.667 | 144 × 144 | 3840 Hz | 4500–6000 Nits | 960 × 960 × 135 |
| 8.0 | 120 × 120 | 3840 Hz | 4500–6000 Nits | 960 × 960 × 135 |
| 10.0 | 96 × 96 | 3840 Hz | 4500–6000 Nits | 960 × 960 × 135 |
Sheet metal cabinet. All models share a standard 960×960×135 mm form factor.
